An operational oceanographic forecast / hindcast model for Shanghai, China

MetOcean Solutions recently completed the development of operational high-resolution wave and hydrodynamic models for the Yangtze River mouth and coastal areas off Shanghai.

The work combined cutting-edge science within our agile operating system to set up wave and current models for Hangzhou Bay, a region within the East China Sea which is partially enclosed by the Ryukyu chain of islands.

“It is a very tricky area to model,” notes Senior Oceanographer Dr Rafael Guedes. “The region is characterised by a wide, shallow and highly irregular shelf with many small islands and underwater reefs. Accurate bathymetry for the area is limited. The site is strongly influenced by the phenomenal seasonal discharge from the Yangtze River, which is one of the largest rivers in the world, and is also subject to strong tidal currents.”

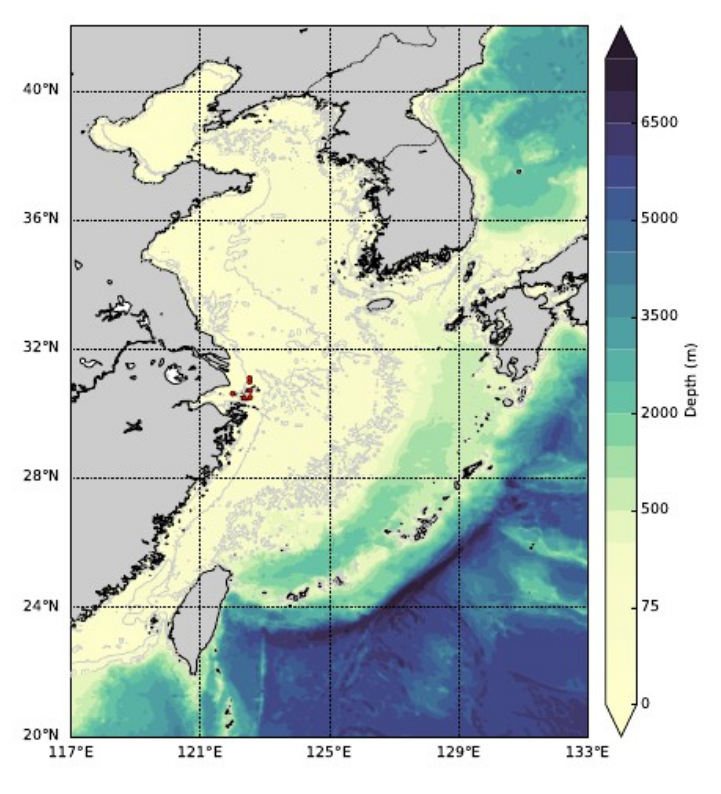

 Bathymetry of the East China Sea. Red dots show the locations of measured data used to validate the models.

 Bathymetry of the East China Sea. Red dots show the locations of measured data used to validate the models.


Progressive downscaling of outputs from MetOcean Solutions’ global wave model WAVEWATCH III using two SWAN nests.

Progressive downscaling of outputs from MetOcean Solutions’ global wave model WAVEWATCH III using two SWAN nests.

Snapshot of surface salinity from the ROMS model. Blue denotes low salinities; red high.

Snapshot of surface salinity from the ROMS model. Blue denotes low salinities; red high.

“In order to model the location well, we had to capture the meteorological events occurring within the East China Sea as well as the swell generated beyond the Ryukyu Islands which propagates into the bay. Frequent typhoons ravage the area, and these are always hard to resolve well. All in all, the area displays a challenging combination of highly variable bathymetry, strong temperature and salinity differences and complex mixing processes.”

The SWAN (Simulating WAves Nearshore) model was used to resolve the wave climate and the Regional Ocean Modeling System (ROMS) was applied to simulate the circulation.

“To model the area we used a technique known as ‘dynamical downscaling’,” explains Rafael. “This process uses information from large scale global models to drive regional models at much higher resolution. The technique allows us to resolve fine-scale features near the coast while still accounting for remote influences to the area from long-generated swell or meso-scale currents.”

Quantile-quantile plot comparing measured and modelled significant wave height (Hs) for wave hindcast using (black) existing CFSR wind fields and (red) adjusted wind fields to correct for observed wind bias.

Quantile-quantile plot comparing measured and modelled significant wave height (Hs) for wave hindcast using (black) existing CFSR wind fields and (red) adjusted wind fields to correct for observed wind bias.

“High-quality input data sources are critical to running wave and hydrodynamic models in such complex settings,” continues Rafael. “We found persistent wind speed bias near the bay in the global reanalysis data source that we used to calibrate the high resolution models. Correcting this bias before running the wave model significantly improved model results just offshore of the bay as shown in the comparison of measured and modelled significant wave height.

The area has heavy shipping traffic, and the operational system outputs, including 7-day forecasts of site-specific waves, winds and currents, are now available to marine users. Please contact us and we will connect you with our partner agency in China.
